Optomec Delivers 3D Electronics Printer for Medical Device Production

New Aerosol Jet system is optimized for industrial manufacturing.

New Aerosol Jet system is optimized for industrial manufacturing.

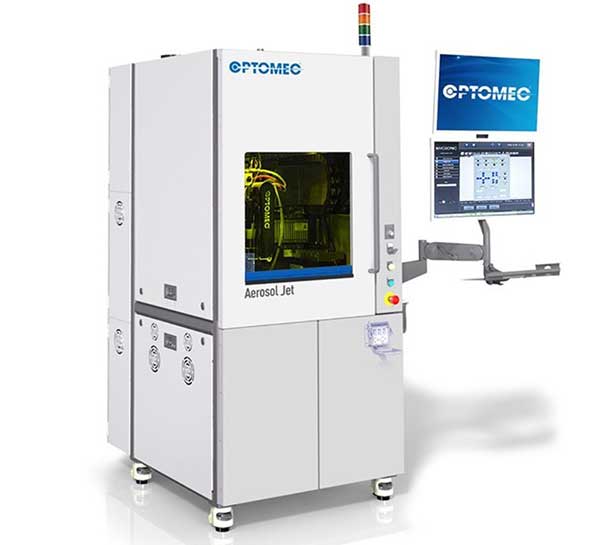

Optomec has delivered a new industrialized 3D printed electronics system to a major U.S. health care manufacturer, where the machine will be used in the volume production of a diagnostic medical device. The system fulfills a $1 million contract that includes delivery of advanced software capabilities, as well as production processes.

The initial application will replace manual integration of flex circuits by using aerosol jet to directly print multilayer 3D circuitry onto a structural component. This additive manufacturing approach will provide reductions in cost and improvements in yield versus existing methods, as well as increased flexibility for next generation designs.

This order is one example of requests for Optomec’s 3D Printed Electronics solution in the medical device market, which now makes up more that 20% of Optomec’s business. Customer applications range from continuous glucose monitors (CGMs) and functionalized catheters to surgical needles and assays for drug discovery. More recently, one of Optomec’s customers is using Aerosol Jet to develop a novel rapid test for COVID that can be used at home.

The new machine is suited to address this wide range of medical device applications, the company says. The Aerosol Jet process is capable of printing conductive, insulating, adhesive and biological materials in 3D space with dimensions as small as 10 um. The industrialized platform is equipped with 4-axis motion of 250x250x300 mm and supports a work envelope to handle relatively large medical electronics, as well as batch production of other smaller devices such as wearables and implantables.

The machine uses operator-friendly software that guides the user in creating production scripts for repetitive processing, and is also equipped with a traceability capability that records and archives all relevant manufacturing data. The machine incorporates advanced process monitoring cameras for automatic device alignment and optical inspection. It also includes automation that reduces the load/unload time for efficient processing and reduced operator fatigue, the company adds.

“Device manufacturers have asked us for a way to eliminate the use of traditional circuit boards and flex circuitry,” says Bryan Germann, Optomec product manager. “This opens up a whole new set of design possibilities for wearables and implantables. By printing circuit components directly onto the device, we can reduce the size by 50% while making the device more comfortable to wear, not to mention reducing manufacturing cost.”
